Brass Round Bar | UNS C36000 | IS 319

UNS C36000 Round Bar Manufacturer, 2.0401 Round Bar Distributor, ASTM B453 Brass Round Bar Exporter, EN CW614N Round Bar Stockist, Brass Round Bar Supplier.

PM Industries manufactures, supplies, and stocks Brass Round Bar in diameters from 3mm to 200mm. Brass is a copper-zinc alloy family, with copper content typically ranging from 55–95% and zinc from 5–45%. The zinc content is what drives the differences in strength, machinability, and corrosion performance between grades. Common grades stocked include free-cutting brass (C36000), naval brass (C46400), red brass (C83600), and leaded brass.

Brass Round Bar, UNS C36000 Round Bar, 2.0401 Round Bar, EN CW614N Round Bar.

Machinability is the characteristic brass is most known for in manufacturing. Free-cutting brass machines faster than almost any other metal, holds tight tolerances, and produces a clean surface finish. That's why it's the default choice for high-volume screw machine parts, valve bodies, fittings, and precision turned components.

Common brass grades and their strengths:

• Free-cutting brass (C36000): highest machinability rating of any copper alloy, ideal for high-speed machining operations
• Naval brass (C46400): excellent seawater corrosion resistance, used for marine hardware and pump components
• Red brass (C83600): higher copper content, good corrosion resistance, suitable for plumbing and valve applications
• Leaded brass: improved machinability and surface finish for precision turned components

Corrosion resistance varies by grade but is generally good against atmospheric conditions, fresh water, and many chemicals. Naval brass handles seawater exposure well. For plumbing applications, brass also offers antimicrobial properties that inhibit bacterial growth in water systems, which is a practical advantage beyond just corrosion performance.

Electrical conductivity runs approximately 28% IACS for typical brass grades. That's sufficient for connectors, terminals, switch components, and socket parts where moderate conductivity combined with good machinability and formability is the priority.

Industries and typical applications:

• Plumbing and HVAC: valves, fittings, faucet components, pipe fittings
• Electrical and electronics: connectors, terminals, switch components, socket parts
• Marine: pump components, marine fittings, underwater hardware
• Automotive: fuel system components, bushings, bearings, decorative trim
• Musical instruments: trumpets, trombones, saxophones, flutes
• Architectural and decorative: handrails, lighting fixtures, decorative hardware, nameplates

Brass cold works well and can be brazed and welded using standard techniques. The characteristic golden-yellow color polishes to a bright finish, which matters for decorative and architectural applications where appearance is part of the specification.

Bar is available in all common grades across the full diameter range, in bright polished, machined, annealed, descaled, and commercial finish conditions, with full material certification.

Contact PM Industries for grade selection guidance, stock availability, and pricing.

Specification Brass Round Bar

Specification	ASTM, EN, DIN, JIS, BS, ASME, AISI
Condition	Hardened & tempered, annealed
Length	1 to 6 Meters, Custom Cut Lengths

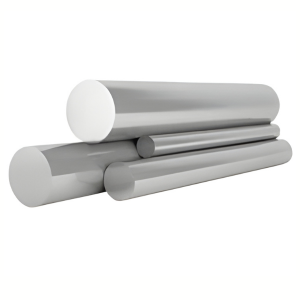

Round Bars	Outside Diameter in the range of 4mm to 500mm above as per the customer requirement.
Bright Bars	Outside Diameter in the range of 4mm to 500mm above as per the customer requirement.

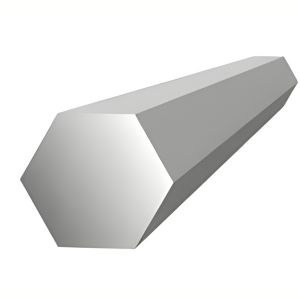

Hex Bars	18mm – 57mm (11/16″ to 2-3/4″) above as per the requirement.

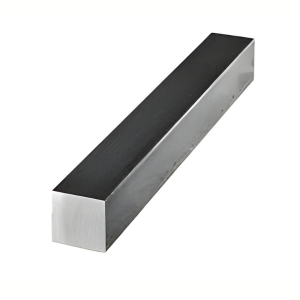

Square Bars	18mm – 47mm (11/16″ to 1-3/4″) above as per the requirement.
Flat Bars	1/2” to 10” in thickness range of 2mm to 150mm
Finish	Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Technique	Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod
Tolerance	H8, H9, H10, H11, H12, H13, K9, K10, K11, K12 or as per clients’ requirements
Test Certificates	EN 10204/3.1B, NACE MR0103, NACE MR0175
Raw Materials Certificate	100% Radiography Test Report
Inspection	Third Party Inspection Report, etc

Available Types

Brass Round Bar Chemical Composition

Brass	Cu	Fe	Pb	Zn
Min./Max.	60.0-63.0	0.35	2.5-3.0	Rem.
Nominal	61.5	–	2.7	35.4

Brass Round Bar Physical Properties

Properties	US Customary
Melting Point -Liquidus	1650 F
Melting Point -Solidus	1630 F
Density	0.307 lb/in3at 68 F
Electrical Resistivity	39.90 ohms – cmil/ft @ 68 F
Electrical Conductivity	26 %IACS @ 68 F
Thermal Conductivity	67 Btu · ft/(hr · ft2·oF)at 68F
Modulas of Elasticity in Tension	14000 ksi

Size

US Bar		Metric		Japanese		Canadian/ASTM
Diameter (Inch)	Size of Bar	Diameter (milimeter)	size of Bar	Diameter (milimeter)	size of Bar	Diameter (milimeter2)	size of Bar
0.375	#3	5.5	5.5	10	10	200	15M
0.25	#2	5	5	6	6	100	10M
0.625	#5	7	7	16	16	500	25M
0.5	#4	6	6	13	13	300	20M
0.875	#7	9	9	22	22	1000	35M
0.75	#6	8	8	19	19	700	30M
1.125	#9	11	11	29	29	2500	55M
1	#8	10	10	25	25	1500	45M
1.375	#11	14	14	35	35
1.25	#10	12	12	32	32
1.625	#13	18	18	41	41
1.5	#12	16	16	38	38
1.875	#15	22	22	48	48
1.75	#14	20	20	44	44
2.25	#18	28	28	57	57
2	#16	25	25	51	51
		36	36
		32	32
		44	44
		40	40
		50	50

Condition

ANN	Annealed
H&T	Hardened and tempered.
PH	Precipitation hardened.

Finish

Bright drawn	BD	Slit rolled edge	SRE
Cold drawn	CD	Polished	P
Peeled and turned	P&T	Rough turned/peeled	RT
Cold finished	CF	Hot rolled pickled and annealed	HRAP
Centreless ground	CG	Hot finished	HF
Smooth turned	ST	reeled and Peeled	PR

Available Stock

Brass Annealed Round Bar	UNS C36000 Shafting Round Bar
UNS C36000 Normalized Round Bar	EN CW614N Automotive Round Bar
EN CW614N Quenched & Tempered Round Bar	2.0401 Aerospace Round Bar
2.0401 Solution Annealed Round Bar	ASTM B453 Brass Oil & Gas Round Bar
ASTM B453 Brass Hardened Round Bar	BS CZ121 Marine Round Bar
BS CZ121 Bright Round Bar	JIS C3604 Medical Grade Round Bar
JIS C3604 Polished Round Bar	Brass Hot Rolled Round Bar
Brass Mirror Finish Round Bar	UNS C36000 Cold Drawn Round Bar
UNS C36000 Pickled & Passivated Round Bar	EN CW614N Cold Rolled Round Bar
EN CW614N Coated / Plated Round Bar	2.0401 Forged Round Bar
2.0401 Commercial Round Bar	ASTM B453 Brass Peeled Round Bar
ASTM B453 Brass Precision Round Bar	BS CZ121 Turned Round Bar
BS CZ121 Straight Length Round Bar	JIS C3604 Ground Round Bar
JIS C3604 Cut-to-Length Round Bar	Brass Centreless Ground Round Bar
Brass Structural Round Bar	UNS C36000 Precision Ground Round Bar
