Forged Fittings | ASME B16.11
PM Industries manufactures, supplies, and stocks Forged Fittings for high-pressure, high-temperature piping that needs secure, leak-free connections. Because they are made by forging rather than casting, these fittings give higher mechanical strength, close dimensional accuracy, and better resistance to impact, corrosion, and wear. They go into oil and gas, petrochemical, power generation, chemical processing, marine, pharmaceutical, food, and water treatment work, where the connection has to hold up over a long service life.

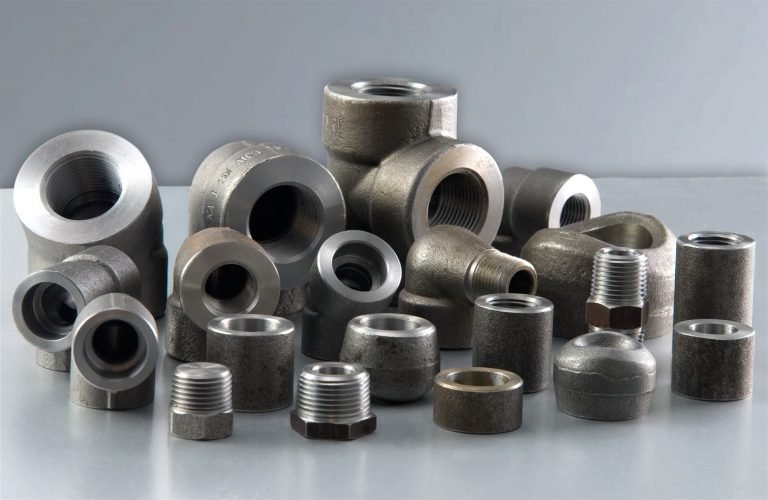

The range covers the shapes a piping system needs, including elbows, tees, couplings, unions, caps, bushings, plugs, nipples, crosses, and outlet fittings. They are made with threaded, socket weld, and custom end connections to suit different installation methods. Material can be stainless steel, carbon steel, alloy steel, duplex and super duplex, or a nickel alloy such as Monel, Inconel, or Hastelloy, along with titanium, so the grade can be matched to the medium and the temperature. Production follows ASME, ASTM, MSS, and BS standards, which keeps quality, dimensions, and performance consistent.
A compact, strong build makes these fittings quick to install and cuts maintenance and downtime. They connect pipe runs, redirect flow, reduce pipe sizes, seal pipeline ends, and form branch connections in both small and large networks. Each fitting is checked through dimensional verification, pressure and hydrostatic testing, positive material identification (PMI), hardness testing, and non-destructive examination, all measured against customer specifications and the relevant standards.
Forged fittings are available in a wide range of pressure classes, sizes, and wall thicknesses, and can be made to specific project requirements. Good resistance to thermal stress, vibration, fatigue, and high pressure is what makes them a common pick for critical process work. The combination of strength, corrosion resistance, long life, and reliable sealing supports efficient, safe operation. As a manufacturer, supplier, and stockist, PM Industries ships standard and custom forged fittings against fast quotes.
Specification Forged Fittings
| Specifications | ASTM A182/ ASME SA182 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Types | Socketweld Fittings, Screwed-Threaded Fittings |
| Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs |
| Thread | NPT, BSPT, BSPP |
Pipes & Tubes are Available in Following Materials:
| Stainless Steel | SS 201, SS 202, SS 301, SS 304, SS 304L, SS 310, SS 310S, SS 316L, SS 316TI, SS 317, SS 317L, SS 321, SS 347, SS 409, SS 409M, SS 409L, SS 410, SS 410S, SS 420, SS 430, SS 431, SS 441, SS 444, SS 446, SS 17-4PH, SS 904L. |
| Duplex Steel | UNS S32205, UNS S31803 |
| Super Duplex Steel | UNS S32750, UNS S32760 |
| Alloys Steel | Alloy 20 |
| Copper Alloys | Cu-Ni 70/30, Cu-Ni 90/10, C 24000, C 75700, C 51100, C 22000, C 27200, C 21000, C 26800, C 52100, C 77000, C 52000, C 11000, C 74500, C 23000, C 28000, C 12200, C 76400, C 51900, C 75400, C 26000, C 51000, C 10200, C 27000 |
| Nickel Alloys | Nickel 200, 201 |
| Inconel | Inconel 600, 601, 625, 718, 800, 825, X-750 |
| Monel | Monel 400, k500 |
| Hastelloy | Hastelloy C-22, C-276, C-4, X |
| Titanium | Grade 1, 4, 5(Ti 6Al-4V), 6(Ti 5Al-2.5Sn), 7, 11, 6Al-2Sn-4Zr-2Mo, Grade 12, 6Al-6V-25n, Grade 23(Ti 6AL-4V ELI), 8Ai-1Mo-1V, Grade 5 ELI, Grade 9(3Al-2.5V), 6Al-7Nb. |
Test Certificates | EN 10204/3.1B, NACE MR0103, NACE MR0175 |
| Raw Materials Certificate | |
| 100% Radiography Test Report | |
| Third Party Inspection Report, etc |
Application
- Food & Beverage
- Paper Industry
- Pharmaceutical
- Hospital Equipment
- Textiles
- Dairy
- Aircraft
- Chemicals
- Others Parts in Machinery
