Nickel Alloy Flanges | ASTM B564 | UNS N02200

PM Industries manufactures, supplies, and stocks Nickel flanges for piping systems that handle aggressive chemicals where stainless steel and carbon steel give out. Most of these flanges are made from commercially pure nickel, either Nickel 200 (UNS N02200) or its low-carbon grade Nickel 201 (UNS N02201). They hold a tight, leak-free seal in high-integrity lines and resist reducing chemicals, halogen gases, and strong caustic alkalis. The standout property is resistance to sodium hydroxide. Nickel flanges handle caustic soda at every concentration and temperature, even when the medium is fully molten. The high purity of the metal also keeps them free from chloride stress-corrosion cracking, a failure mode that ends the life of many other alloys in harsh plants.

Nickel flanges perform well far below and far above room temperature. Nickel 201 carries a restricted carbon content that resists graphitization at high heat, so it keeps its strength and ductility up to 1200°F (649°C). At the cold end, both grades stay tough. Their face-centered cubic structure holds up in cryogenic service down toward absolute zero without turning brittle under thermal shock. The metal conducts heat and electricity well and has low vapor pressure. Shops machine and weld it with standard methods, including gas tungsten arc (GTAW/TIG) and gas metal arc (GMAW/MIG) welding, to form strong permanent joints.

The two grades differ mainly in carbon content. Nickel 200 caps carbon at 0.15% and serves well up to 600°F (315°C), while Nickel 201 caps carbon at 0.02% and is the better pick above that point because its lower carbon reduces the risk of graphitization. Both grades carry a density of 0.321 lb/in³ (8.89 g/cm³) and are ferromagnetic at room temperature. They give excellent resistance to caustic soda and other alkalis, good resistance to hydrochloric, sulfuric, and phosphoric acids in non-aerated conditions, and excellent resistance to hydrofluoric acid and dry halogens. Oxidizing salt solutions and nitric acid are not recommended.

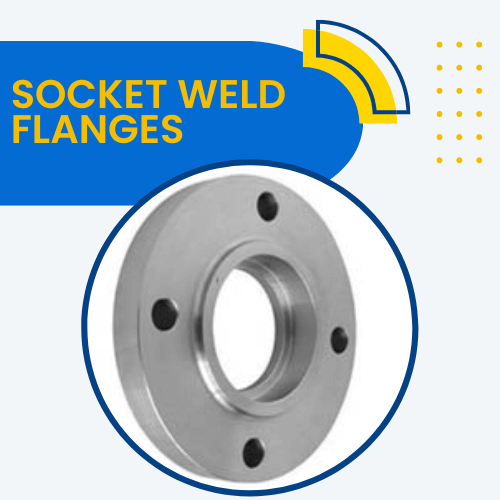

PM Industries supplies nickel flanges in the styles your line calls for, so you can match each flange to its joint and pressure rating. Weld neck, slip-on, blind, and socket weld styles are stocked, and other configurations such as lap joint, threaded, and orifice flanges can be produced to order. Flange material is supplied to ASTM B564 and ASME SB564 for nickel alloy forgings, with dimensions to ASME B16.5 and ASME B16.47. Other national and customer standards are available on request.

Specification Nickel Flanges

Standards	ANSI/ASME B16.5, B16.48, ANSI Flanges, GOST Flanges, DIN Flanges, EN-1092, B16.47 Series A & B, ASME Flanges, EN Flanges, AWWA Flanges, BS Flanges.
JIS Standard	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
DIN FLANGES	DIN 2527, 2627, 2631, 2656, 2576, 2673, 2629, 2628, 2566, 2641, 2637, 2655, 2634, 2636, 2632, 2633, 2638, 2642, 2573, 2635.
Pressure Rating	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Types	Threaded, Plate, Screwed, Forged.
Supporting material	Gasket, Ring Joint, Flange Bolts
Size range	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Production technique	Forged, machined and Heat treated

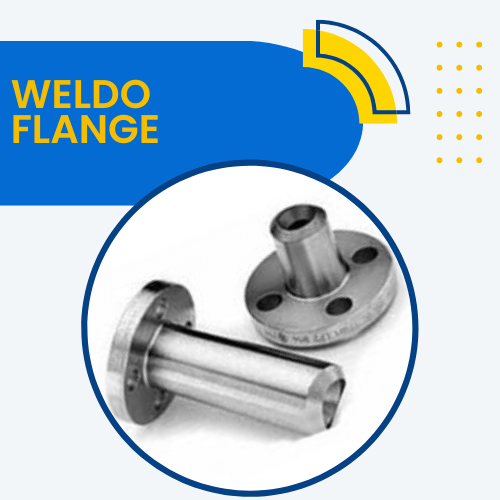

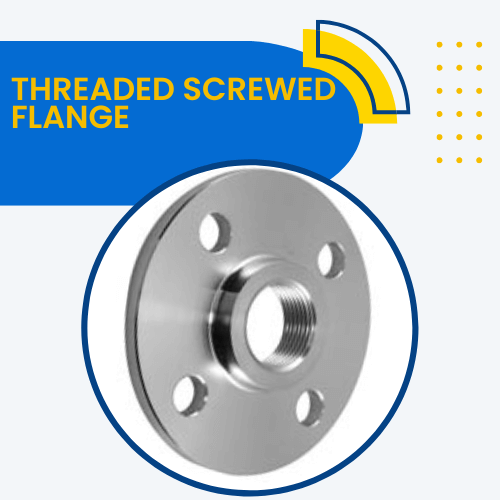

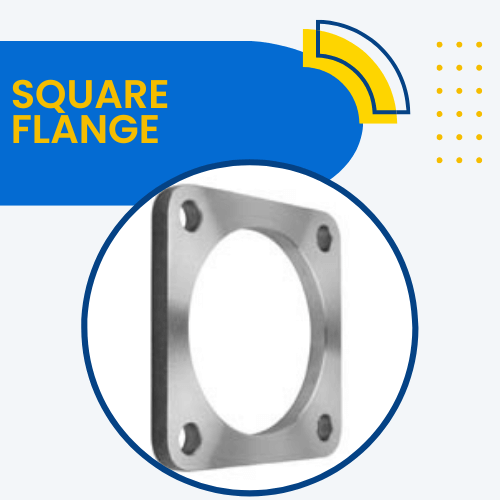

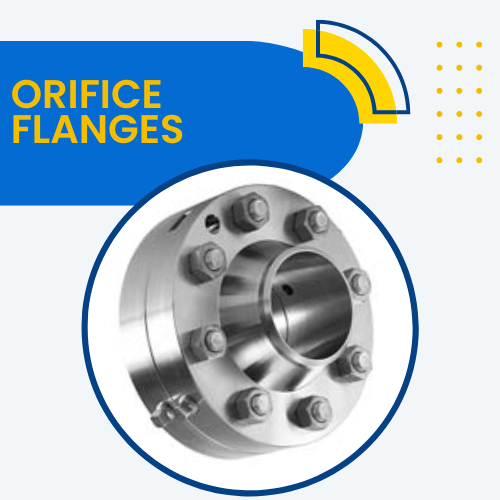

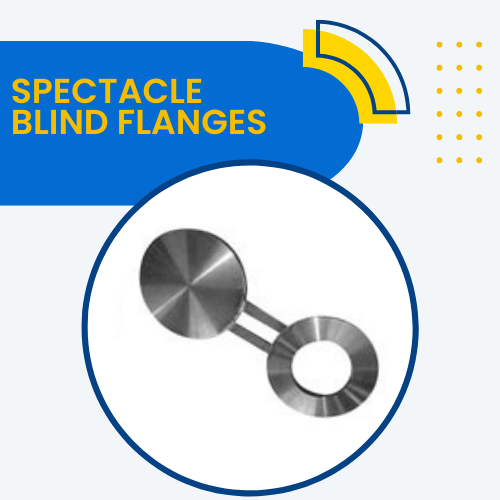

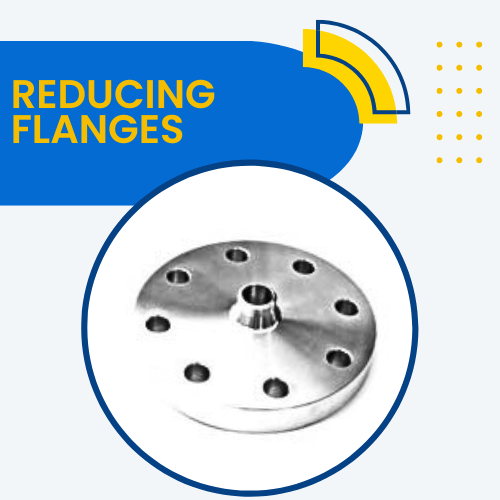

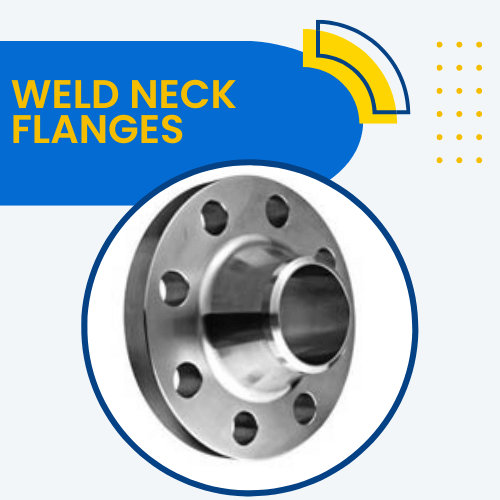

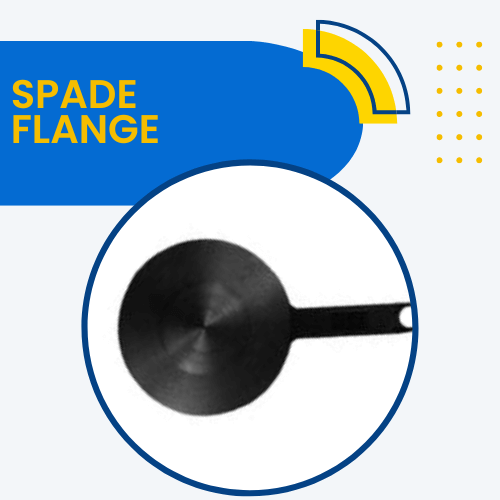

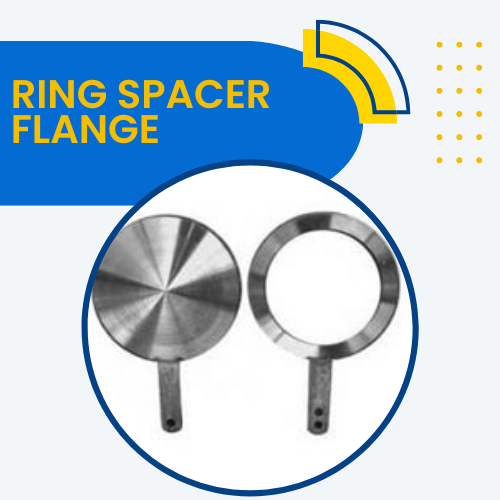

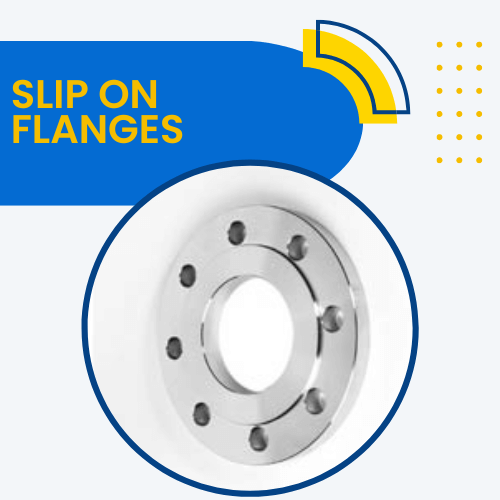

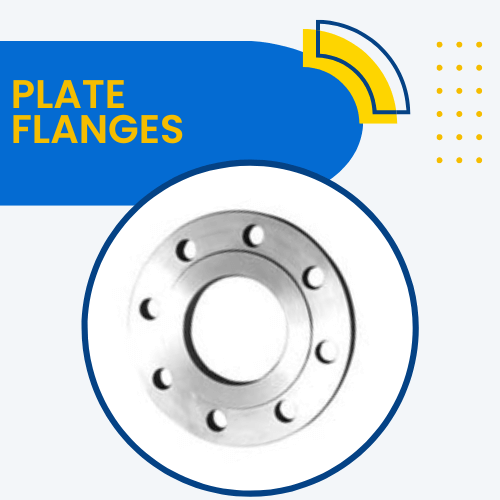

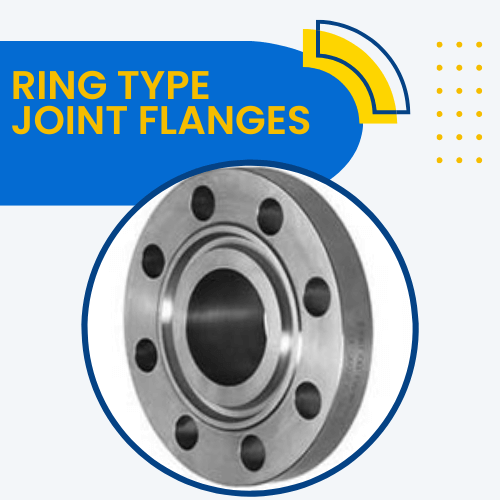

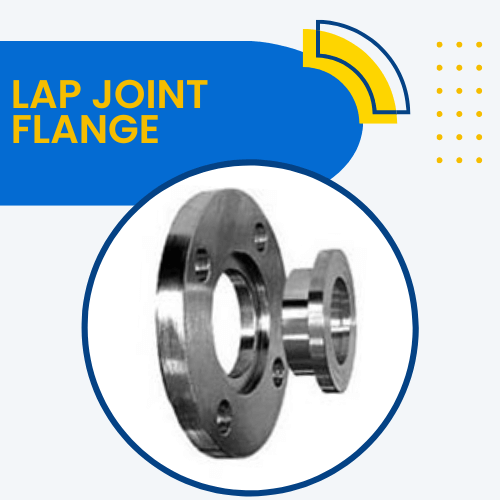

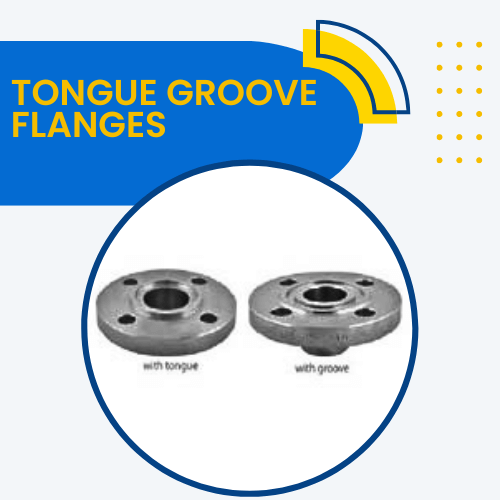

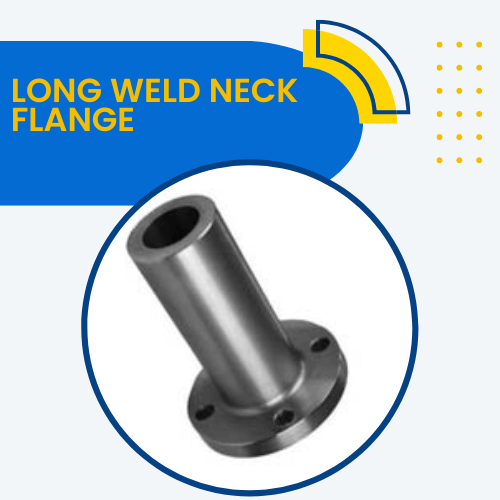

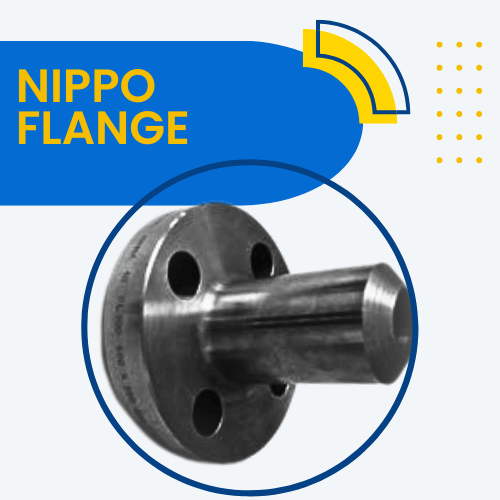

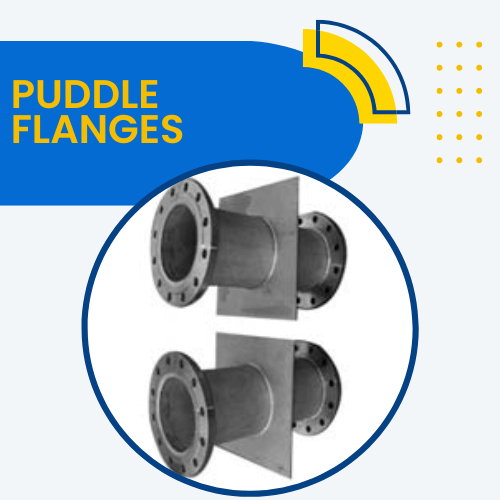

Available Flange Type	Weld Neck Flanges, RTJ Flanges, Slip On Flanges, Spectacle Blind Flanges, Flanges Gaskets, Square Flanges, Standard Insert Flanges, High Hub Blinds Flanges, Flat Flanges, forged flanges, Weldo / Nipo Flanges, Jacket Insert Flanges, Tongue groove Flanges, Blind Flanges, Socket Weld Flanges, Large diameter Flanges, Long Weld Neck Flanges, Spacer Blinds, SWRF Flanges, SORF Flanges, Angle Face Rings Flanges, Spades Ring Spacers Flanges, WNRF Flanges, Screwed Flanges, Insert Flanges, flanges bolts, cf flange, Lap Joint Flanges, ASME B16.36 Orifice Flanges, Plate Flange, Expander Flanges, Ring Type Joint Flanges, Loose Flanges, Reducing Flanges, puddle flange, Threaded Flanges, blank flange, vacuum flange.

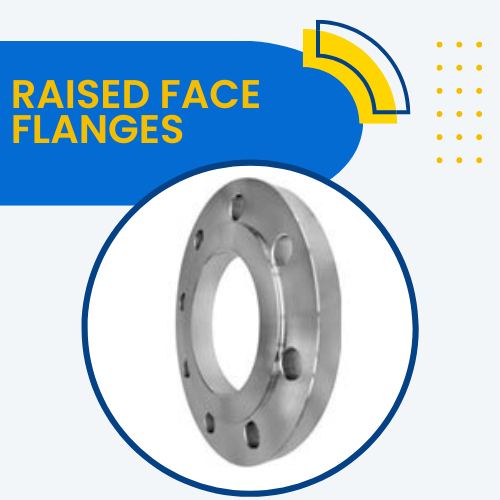

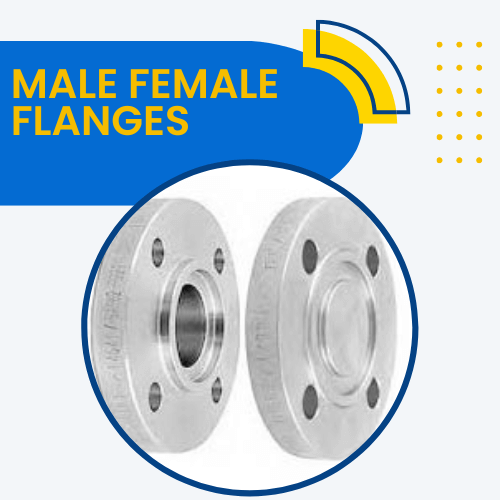

Connect Type/ Flange Face Type	Ring Type Joint (RTJ), Flat Face (FF), Tongue & Groove, Small Male-Female (SMF), Lap-Joint Face (LJF), Raised Face (RF), Large Male-Female (LMF), Small Tongue.
Custom design	As per your drawing
Test	Direct-reading Spectrograph, X-ray detector, UItrasonic flaw detector, Magnetic particle detector, Hydrostatic testing machine.
Origin	Indian / USA / Korean / West Europe / Japan
Pressure Class	PN 6 TO PN 100
Thickness	Normal Pipe Size ≤ 18
Bore Diameter	Normal Pipe ≤ 10
High Temperature	Above 200°C (400°F) For Class 150 Or Above 400°C (750°F)
Low Temperature	Above -29 Degree C (−20°F)
Coating/Surface Treatment:	Zinc Plated, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized.
European/African/Russian Standard Flanges	Available
Gaskets Types	Full Face, Metallic Ring, Flat Ring Gasket
Marking Standard	Name of Manufacturer
	Schedule
	Type of Flange Facing
	Pressure Class
	Nominal Pipe Size, etc
Test Certificates	EN 10204/3.1B, NACE MR0103, NACE MR0175
	Raw Materials Certificate
	100% Radiography Test Report
	Third Party Inspection Report, etc

Flange Type Available

Equivalent Grade

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST
SS 304	S30400	1.4301	Z7CN18-09	X5CrNi18-10	SUS 304	304S31	08Х18Н10

Chemical Properties

Grades	C	Mn	Si	P	S	Cr	Ni	N
304	0.07 max	2.0 max	0.75 max	0.045 max	0.03 max	18.0 - 20.0	8.0 - 10.5	—

Mechanical Properties

Grade	Tensile Strength (ksi min)	Yield Strength 0.2% (ksi min)	Elongation (%)	Hardness (Brinell) Max	Hardness (Rockwell B) Max
304	75	30	40	201	92

Stainless Steel Flanges Wall Thickness

NPS (Normal Pipe Sizes)	Outside Daimeter (O.D.)	Schedule 10	Schedule 20	Schedule 30	Schedule 40	Schedule 60	Schedule 80	Schedule 100	Schedule 120	Schedule 140	Schedule 160
½	0.84	0.083	…	…	0.109	…	0.147	…	…	…	0.188
¾	1.05	0.083	…	…	0.113	…	0.154	…	…	…	0.219
1	1.315	0.109	…	…	0.133	…	0.179	…	…	…	0.25
1 ¼	1.66	0.109	…	…	0.14	…	0.191	…	…	…	0.25
1 ½	1.9	0.109	…	…	0.145	…	0.2	…	…	…	0.281
2	2.375	0.109	…	…	0.154	…	0.218	…	…	…	0.344
2 ½	2.875	0.12	…	…	0.203	…	0.276	…	…	…	0.375
3	3.5	0.12	…	…	0.216	…	0.3	…	…	…	0.438
3 ½	4	0.12	…	…	0.226	…	0.318	…	…	…	…
4	4.5	0.12	…	…	0.237	…	0.337	…	0.438	…	0.531
5	5.563	0.134	…	…	0.258	…	0.375	…	0.5	…	0.625
6	6.625	0.134	…	…	0.28	…	0.432	…	0.562	…	0.719
8	8.625	0.148	0.25	0.277	0.322	0.406	0.5	0.594	0.719	0.812	0.906
10	10.75	0.165	0.25	0.307	0.365	0.5	0.594	0.719	0.844	1	1.125
12	12.75	0.18	0.25	0.33	0.406	0.562	0.688	0.844	1	1.125	1.312
14	14	0.25	0.312	0.375	0.438	0.594	0.75	0.938	1.094	1.25	1.406
16	16	0.25	0.312	0.375	0.5	0.656	0.844	1.031	1.219	1.438	1.594
18	18	0.25	0.312	0.438	0.562	0.75	0.938	1.156	1.375	1.562	1.781
20	20	0.25	0.375	0.5	0.594	0.812	1.031	1.281	1.5	1.75	1.969
22	22	0.25	…	…	…	…	…	…	….	….	….
24	24	0.25	0.375	0.562	0.688	0.969	1.219	1.531	1.812	2.062	2.344
26	26	….	….	….	….	….	….	….	….	….	….
30	30	0.312	0.5	0.625	….	….	….	….	….	….	….
36	36	0.312	0.5	0.625	0.75	….	….	….	….	….	….
40	40	….	….	….	….	….	….	….	….	….	….
42	42	……..	……..	……..	……..	……..	……..	……..	……..	……..	……..
48	48	……..	……..	……..	……..	……..	……..	……..	……..	……..	……..

Pressure Class/ Rating

ASME/ANSI B 16.5	Lap Joint Flange, Ring Type Joint Flange, Threaded Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Slip on Flange, Welding Neck Flange.
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47	Blind Flange [Series A & B], Welding Neck Flange.
PRESSURE CLASS	75, 150, 300, 400, 600, 900
ASME/ANSI B 16.36	Slip on Flange, Threaded Flange, Welding Neck Flange.
PRESSURE CLASS	300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1	Plate Flange, Welding Neck Flange, Hubbed Slip on Flange, Lapped Pipe End Flange, Loose Plate With Weld Neck Flange, Hubbed Threaded Flange, Blank Flange, Loose Plate Flange.
PRESSURE CLASS	PN 2.5 TO PN 40
BS 4504[PART 1]	Blank Flange, Loose Plate With Weld On Plate Collar, Welding Neck Flange, Plate Flange, Hubbed Slip-On Hubbed Threaded.
PRESSURE CLASS	PN 2.5 TO PN 400
BS 1560 BOSS	Blind Flange, Screwed Boss Flange, Welding Neck Flange,Slip-On Flange, Lapped Flange, Socket Welding Flange.
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
BS10	Screwed Boss Flange, Plate Slip-On Flange, Slip-On Boss Flange, Blind Flange, Welding Neck Flange.
TABLE	D, E, F, H
DIN FLANGES	DIN 2527, 2632, 2635, 2673, 2566, 2655, 2631, 2627, 2634, 2576, 2636, 2629, 2633, 2573, 2656, 2638, 2637, 2642, 2641, 2628
PRESSURE CLASS	PN 6 TO PN 100

Weight Chart Of Nickel Flanges

NPS	Gasket I.D.	Gasket O.D.
Class 150	Class 300	Class 400	Class 600	Class 900
1/2	0.84	1.875	2.125	2.125	2.125	2.50
3/4	1.06	2.25	2.625	2.625	2.625	2.75
1	1.31	2.625	2.875	2.875	2.875	3.125
1 1/4	1.66	3	3.25	3.25	3.25	3.50
1 1/2	1.91	3.375	3.75	3.75	3.75	3.875
2	2.38	4.125	4.375	4.375	4.375	5.625
2 1/2	2.88	4.875	5.125	5.125	5.125	6.50
3	3.50	5.375	5.875	5.875	5.875	6.625
4	4.50	6.875	7.125	7.00	7.625	8.125
5	5.56	7.75	8.50	8.375	9.50	9.75
6	6.62	8.75	9.875	9.75	10.50	11.375
8	8.62	11	12.125	12.00	12.625	14.125
10	10.75	13.375	14.25	14.125	15.75	17.125
12	12.75	16.125	16.625	16.50	18.00	19.625

Price Of Nickel Flanges

Stainless Steel Forged Flanges	USD $2.05 - $10.06 / Piece (FOB Price) on request
Stainless Steel Blind Flanges	USD $2.05 - $10.06 / Piece (FOB Price) on request
Stainless Steel Slip On Flange	USD $2.05 - $10.06 / Piece (FOB Price) on request
Stainless Steel Socketweld Flanges	USD $2.05 - $10.06 / Piece (FOB Price) on request
Stainless Steel Long Weld Neck Flanges	USD $2.05 - $10.06 / Piece (FOB Price) on request
