Inconel 600 Round Bar
Specification-
| Specification | ASTM, EN, DIN, JIS, BS, ASME, AISI |
| Condition | Hardened & tempered, annealed |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Round Bars | Outside Diameter in the range of 4mm to 500mm above as per the customer requirement. |
| Bright Bars | Outside Diameter in the range of 4mm to 500 mm above as per the customer requirement. |
| Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) above as per the requirement. |
| Square Bars | 18mm – 47mm (11/16″ to 1-3/4″) above as per the requirement. |
| Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish. |
| Technique | Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
|
Test Certificates
|
EN 10204/3.1B, NACE MR0103, NACE MR0175 |
| Raw Materials Certificate | |
| 100% Radiography Test Report | |
| Third Party Inspection Report, etc |
Equivalent grade
| Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
| BS | En | No | AFNOR | ||||
| Alloy 600 | N06600 | NA 13 | NiCr15Fe | 2.4816 | NC15FE11M | МНЖМц 28-2,5-1,5 | NCF 600 |
Inconel 600 Round Bar Price Per KG
| Sr. No | Inconel 600 | Ex-Works | CIF Price | Stock |
|---|---|---|---|---|
| 1 | 20mm to 50mm | $ 43.00/kg | $ 44.00/kg | Ex-Stock |
| 2 | 50mm to 70mm | $ 43.20/kg | $ 44.20/kg | Ex-Stock |
| 3 | 70mm to 100mm | $ 43.50/kg | $ 44.50/kg | Ex-Stock |
| 4 | 100mm + | $ 44.00/kg | $ 45.00/kg | Ex-Stock |
ASTM B166 UNS N06600 Flat Bar Tolerances
| Tolerances for Cold Drawn Inconel 600 Round Bar | ||
|---|---|---|
| Shape / Section | Size, diameter or width across flats | Permitted variation |
| mm | mm | |
| Round | ≥6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 |
+ 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 |
| Flat (thickness) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 |
+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.250 + 0 to - 0.350 |
| Flat (width) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 > 100 ≦ 130 > 130 ≦ 160 > 160 ≦ 320 |
+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.190 + 0 to - 0.220 + 0 to - 0.350 + 0 to - 1.00 + 1.00 to - 1.00 |
| Square and hexagon |
≥ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 105 |
+ 0 to - 0.090 + 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.250 |
Available Form:-

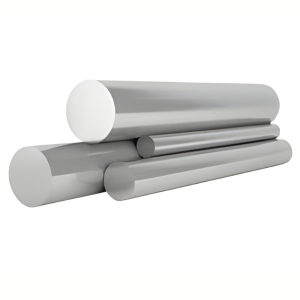

Round Bar

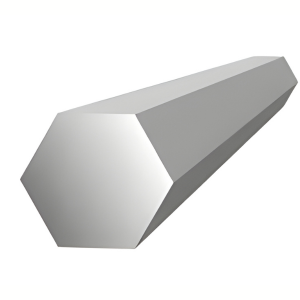

Hex Bar

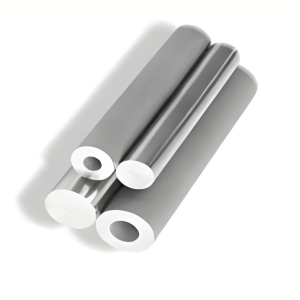

Hollow Bar

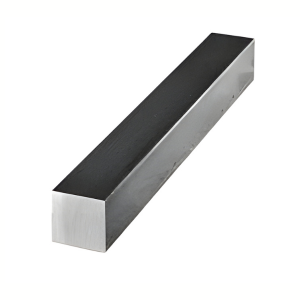

Square Bar

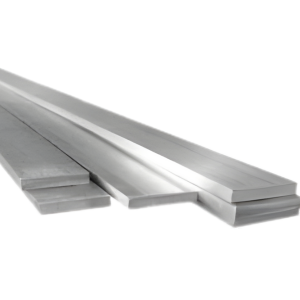

Flat Bar

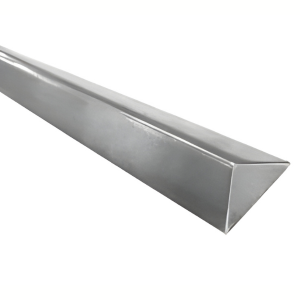

Triangle Bar
Inconel 600 Round Bar finishes
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
Alloy 600 Rod Stock List
| Alloy | Product form |
|---|---|
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | annealed, centerless ground h9 |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | annealed, centerless ground |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | cold drawn, annealed |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | hot finished, annealed, ground |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | hot worked, annealed |
| Alloy 600 (75 Ni/16 Cr) | hot finished, annealed, ground |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | extruded round, machined, annealed |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | hot worked, annealed, peeled |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | hot finished, annealed, peeled |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | forged, annealed, peeled |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | annealed, peeled |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | peeled |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | hot worked, annealed, peeled |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | hot rolled, annealed, peeled |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | peeled, annealed |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | annealed, peeled |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | forged, annealed, machined |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | forged, annealed, peeled |
| Alloy 600 AMS 5665 (75 Ni/16 Cr) | forged, annealed, turned |
AMS 5665 bar Weights chart
| Round Bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3" | 10.900 | 35.762 |
| 1/8" | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4" | 12.800 | 41.996 |
| 5/32" | 0.029 | 0.095 | 7/8" | 0.926 | 3.038 | 3-1/2" | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4" | 17.001 | 55.780 |
| 3/16" | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4" | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1" | 1.210 | 3.970 | 4-1/4" | 21.908 | 72.249 |
| 7/32" | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2" | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4" | 27.366 | 90.249 |
| 1/4" | 0.076 | 0.249 | 1-1/8" | 1.534 | 5.033 | 5" | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2" | 36.690 | 121.000 |
| 5/16" | 0.118 | 0.387 | 1-1/4" | 1.924 | 6.349 | 6" | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2" | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8" | 2.303 | 7.550 | 7" | 59.432 | 196.000 |
| 3/8" | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2" | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8" | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10" | 121.048 | 397.140 |
| 7/16" | 0.232 | 0.761 | 1-1/2" | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2" | 0.303 | 0.994 | 1-5/8" | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4" | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16" | 0.383 | 1.256 | 1-7/8" | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8" | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2" | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8" | 5.475 | 17.963 | |||
| 11/16" | 0.573 | 1.880 | 2-1/4" | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4" | 0.682 | 2.237 | 2-3/8" | 6.838 | 22.435 | |||
| 2-1/2" | 7.576 | 24.856 | ||||||
| 2-5/8" | 8.354 | 27.409 | ||||||
| 2-3/4" | 9.169 | 30.083 | ||||||
Application
- Food & Beverage
- Paper Industry
- Pharmaceutical
- Hospital Equipment
- Textiles
- Dairy
- Aircraft
- Chemicals
- Others Parts in Machinery
