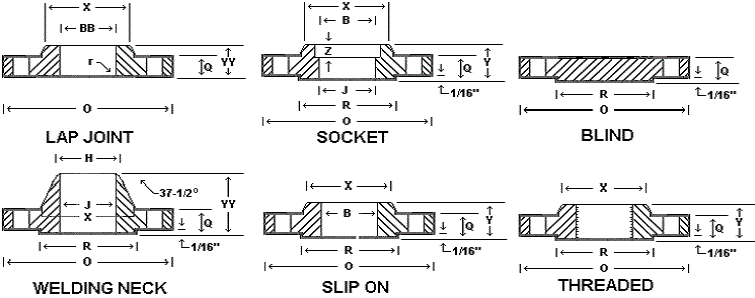

Flange Dimension Charts
Dimension
Specification Dimension
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B], Welding Neck Flange. |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Slip on Flange, Threaded Flange, Welding Neck Flange. |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Plate Flange, Welding Neck Flange, Hubbed Slip on Flange, Lapped Pipe End Flange, Loose Plate With Weld Neck Flange, Hubbed Threaded Flange, Blank Flange, Loose Plate Flange.
|
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Blank Flange, Loose Plate With Weld On Plate Collar, Welding Neck Flange, Plate Flange, Hubbed Slip-On Hubbed Threaded. |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Blind Flange, Screwed Boss Flange, Welding Neck Flange,Slip-On Flange, Lapped Flange, Socket Welding Flange. |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Screwed Boss Flange, Plate Slip-On Flange, Slip-On Boss Flange, Blind Flange, Welding Neck Flange. |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2632, 2635, 2673, 2566, 2655, 2631, 2627, 2634, 2576, 2636, 2629, 2633, 2573, 2656, 2638, 2637, 2642, 2641, 2628 |
| PRESSURE CLASS | PN 6 TO PN 100 |
